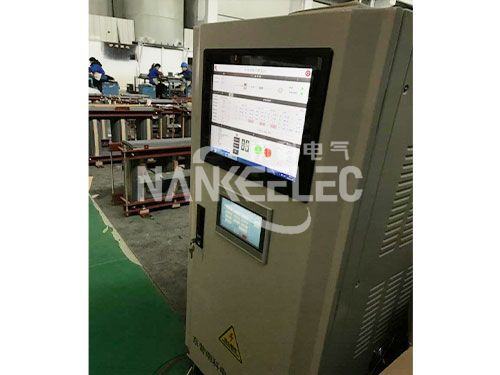

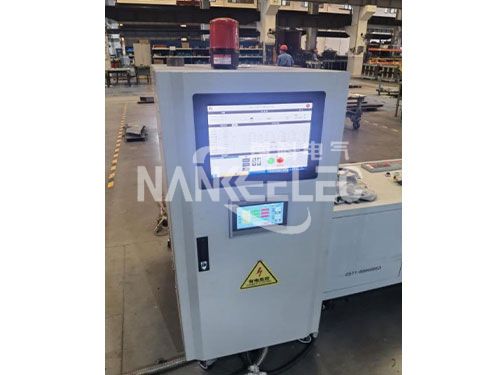

NKT-IC Mobile iron core loss testing system.

产品详情

Regulator parameters	Capacity	20-80kVA
Regulator parameters	Output voltage	0-1000V
Voltage measurement	Range	50/150V/250V/500/1000V
	Range conversion method	Automatic or fixed range.
	True RMS accuracy.	45Hz Read 65Hz		40Hz Read 500Hz
	True RMS accuracy.	（±0.1％Read）+（ ±0.1％ range）		（±0.3％Read）+（ ±0.3％range）
	Frequency accuracy	±0.05％Inside
Current measurement	Range	4 Gear range
	Range	0.3A / 1.25A / 5A / 20/40A
	Range conversion method	Automatic or fixed range.
	Show the digits.	5 Position
	Calculation method	Calculate the true RMS value using digital technology（True RMS）
	Sample frequency	F ∙ 256
	Frequency range	47Hz Until 63Hz（Bandwidth: Narrow frequency. 40Hz-5KHz，Bandwidth：40Hz-20KHz）
	Accuracy	45Hz Until 65Hz		40Hz Until 500Hz
	Accuracy	（±0.1％Read）+（±0.1％range）		（±0.3％Read）+（±0.3％range）
Power measurement	Show the digits	5Position
	Calculation method	Calculate the true power using digital technology（True Watt）
	Frequency range	45Hz Until 65Hz
	Accuracy	45Hz Until 65Hz	40Hz Until 500Hz
	Accuracy	（±0.1％Read）+（±0.1％range）	We don't recommend measuring.
